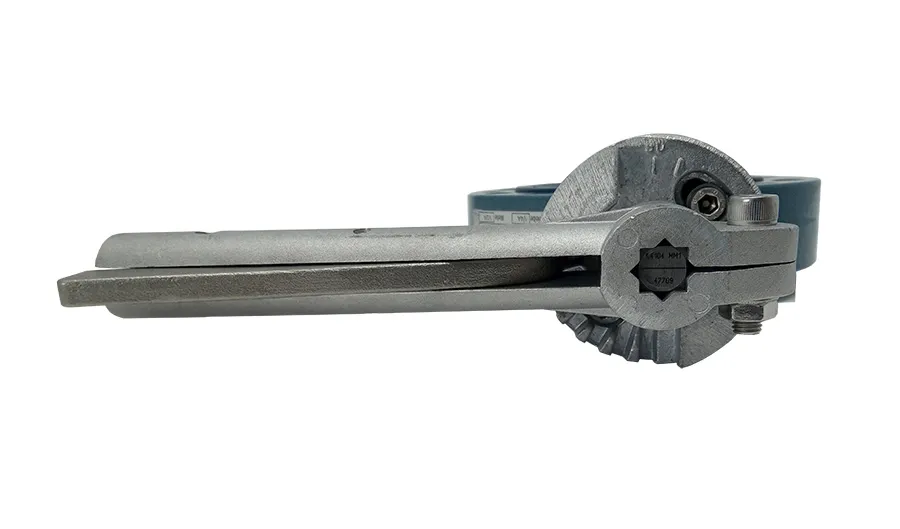

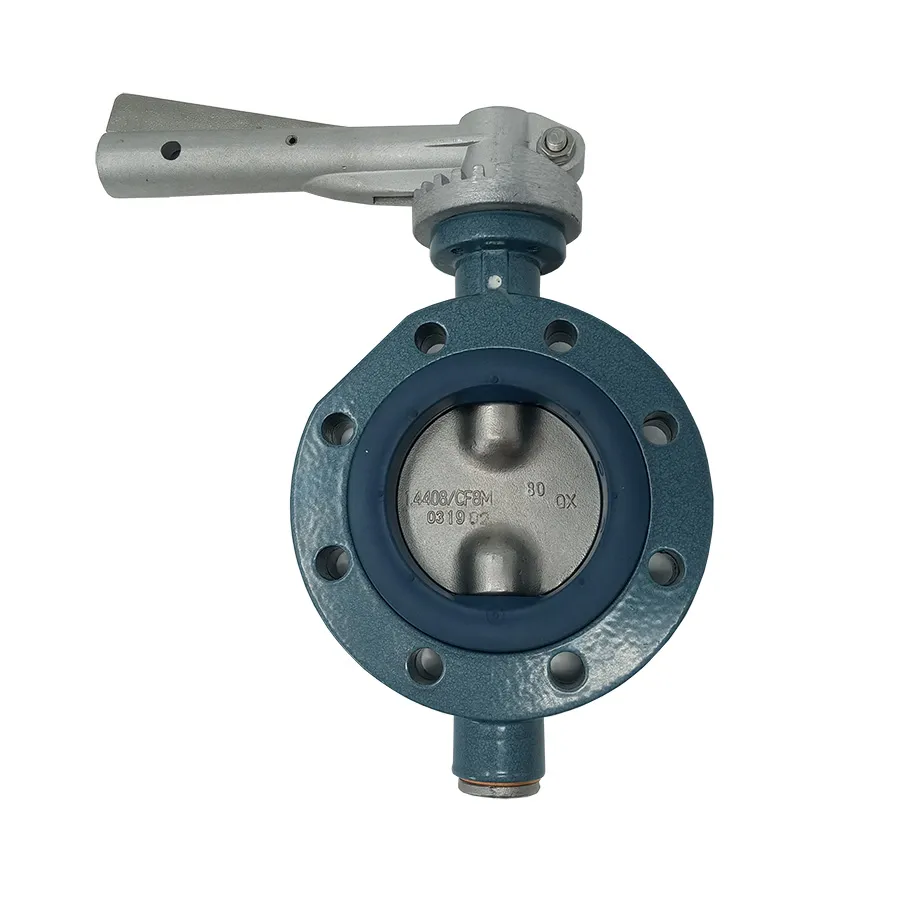

VALVULA MARIPOSA DN80 TW DN80 CON APERTURA Y CIERRE GRADUADO 15º EBRO ARMATUREN TW DN80 DIN 28549

Nominal diameter: DN 80

Face-to-face: EBRO works standard

Flange accomodation: DIN 28459 flanges for tank lorries

Flange Surface Design: DIN 2526, Form A-E, ANSI RF

Tightness check: DIN 3230 T3 BO, BN (Leakage Rate 1)

ISO 5208, Category 3

API 598 Table 5

ANSI B 16-104, Class VI

Temperature range: –20 °C to + 80 °C (depending on pressure and medium)

Presión operacional: max. 6 bar

Differential pressure: –20 °C to + 80 °C (depending on pressure and medium)

Body: aluminium

Seat: viton

Disc Stainless Steel

EBRO works standard
